DRC Error

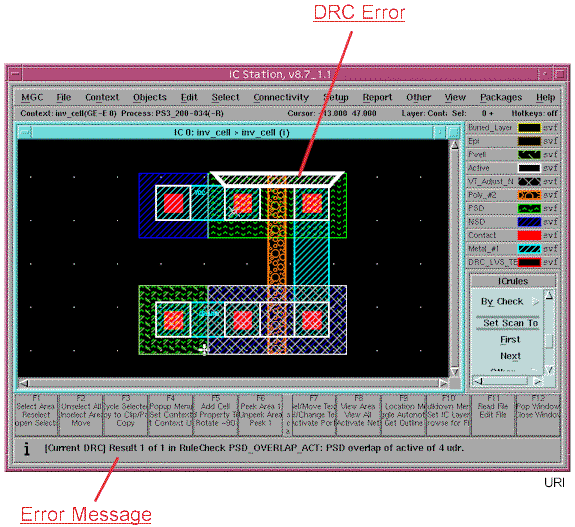

As you view each design rule error, that error will flash in white and an error message will appear in the message window.  In the DRC error that is displayed above, the P diffusion layer overlaps the Active layer by 3 udr (units).  The design rule states that P diffusion must overlap Active by at least 4 udr.
