Bandgap

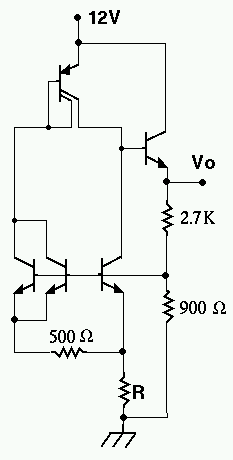

Figure 3
3. For the circuit shown in figure 3;
What is the current through the resistor, R?
What value of R results in a bandgap voltage source?
What is the value of V
o
?
Use the transistors described in the
Widlar current mirror problem.
Answer
