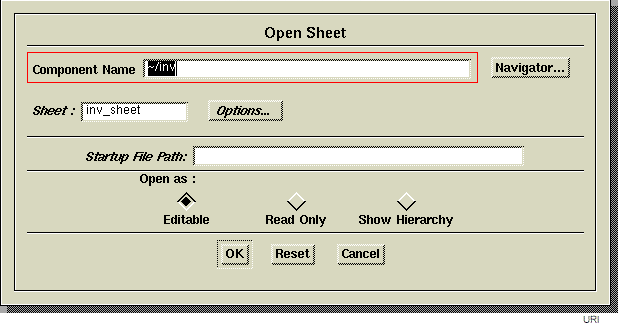

Open Sheet Dialog Box





Type "~/inv" in the Component Name text box.
Type "inv_sheet" in the Sheet text box.

When you press the OK button.  DA will convert the inv directory into a Mentor Graphics Component object, and it will create a sheet file called: ~/inv/schematic/inv_sheet.
