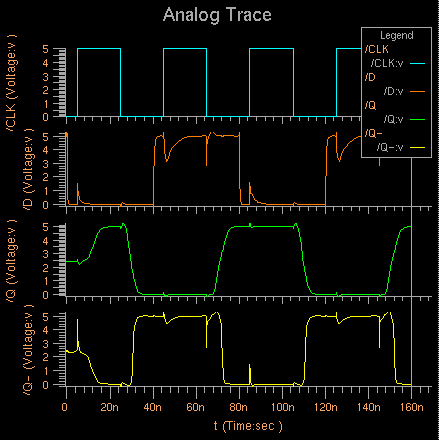

Q:
- td (l->h) => 6.090 nSec
- td (h->l) => 4.708 nSec
- tr => 5.678 nSec
- tf => 4.252 nSec
Q-:
- td (l->h) => 5.697 nSec
- td (h->l) => 7.116 nSec
- tr => 1.134 nSec
- tf => 1.409 nSec
Signal Rules:
- Minimum CLK pulse width =4.58 nSec
- Minimum time from D change to down-edge of CLK =3.191 nSec
|
