pass   transistor   (8/4, 8/4)

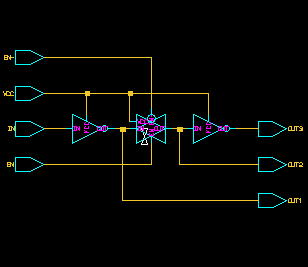

Schematic Simulation Result
EN EN- Result
0V 5V Tri-State
0V 0V Minmum Output Voltage = 1.313 V
  => Threshold Vol. of pmos = 1.313 V
5V 5V Maximum Output Voltage = 2.9266 V
  => Threshold Vol. of nmos = 2.0734 V
5V 0V td(l->h) = 1.23 nSec
td(h->l) = 0.79 nSec
tr = 6.82 nSec
tf = 2.39 nSec

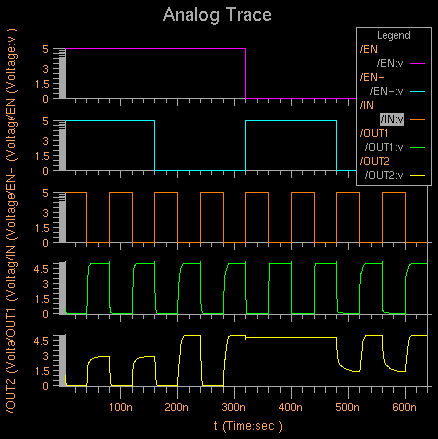

                                                                        Simulation #1

Schematic   Back to URI cells
