pass   transistor

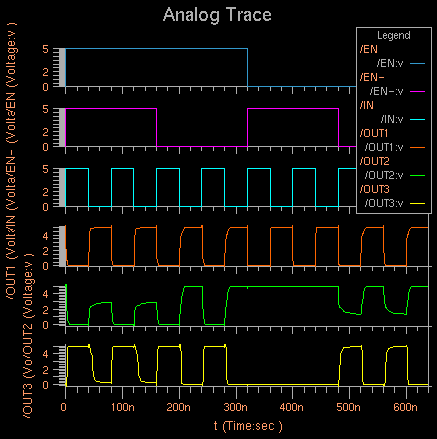

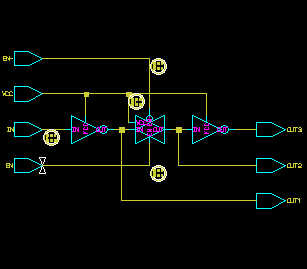

Schematic Simulation Result
EN EN- Result
0V 5V Tri-State
0V 0V Minmum Output Voltage = 1.3485 V
  => Threshold Vol. of pmos = 1.3485 V
5V 5V Maximum Output Voltage = 2.8793 V
  => Threshold Vol. of nmos = 2.1207 V
5V 0V td(l->h) = 2.580 nSec
td(h->l) = 1.470 nSec
tr = 5.170 nSec
tf = 3.470 nSec

                                                                        Simulation #1
