NOR4_16_8

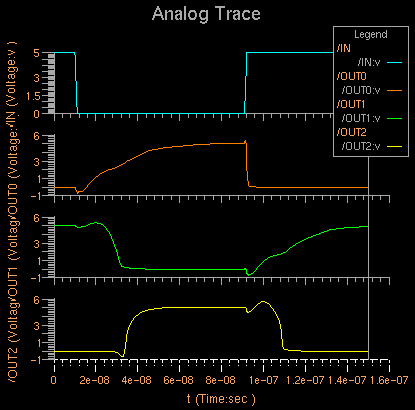

Schematic Simulation Result

tr => 20.9 nSec
tf => -5.0 nSec  (50% fall time)

                                                                        Simulation #1

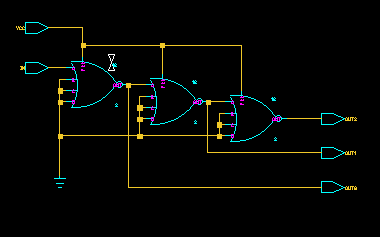

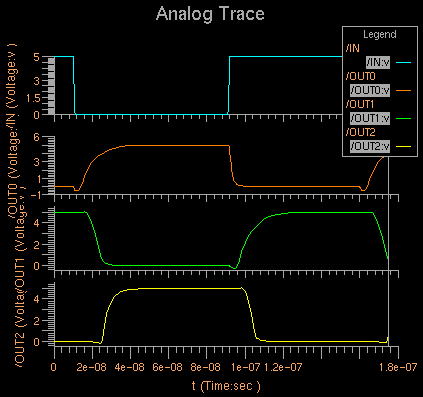

Schematic Simulation Result

tr => 8.7 nSec
tf =>  3.1 nSec

                                                                        Simulation #2
