I   N   V   E   R   T   E   R

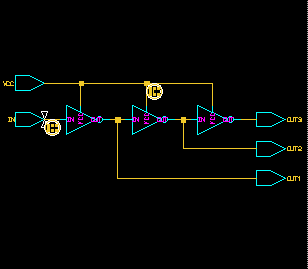

Schematic Simulation Result
td (l->h) => 1.5475 nSec
td (h->l) => 1.5290 nSec
tr => 2.9414 nSec
tf => 2.1230 nSec

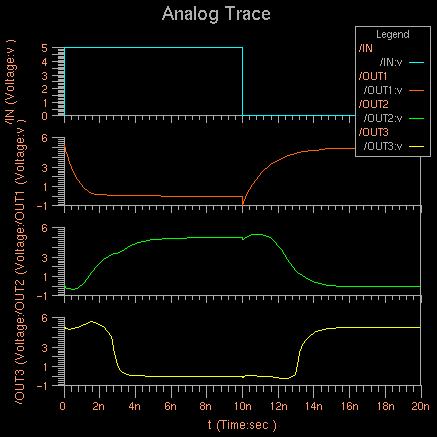

                                                                        Simulation #1


Transition Point = 2.4267V, 2.5V

Input Output
0V ~ 1.346V 4.95V ~ 5.0V
3.482V ~ 5.0V 0V ~ 0.05V

Simulation Result

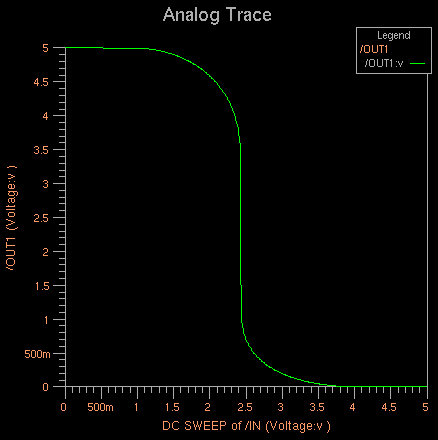

                                Voltage Transfer Characteristics
