Figure 3

3.   Calculate the small signal gain, Vout/Vin, for the circuit shown in figure 3.

Use the transistors described in the Widlar current mirror problem.

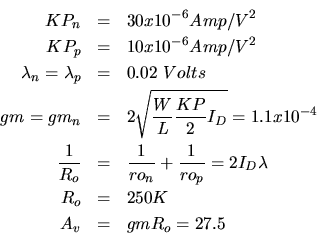

Answer

Since the width of P2 is twice the width of P1,

I_D = 2I_ref = 100 uA
