Ele591I E-Testing II
Final Exam


Figure 4
5/9/2000

Question 4

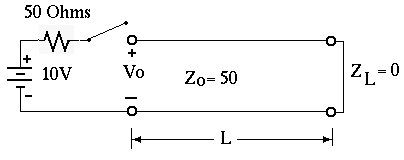

  1. Design a circuit that generates a 5 volt 10 ns pulse using a shorted transmission line.
Assume the velocity of propagation on the line is 3x108 meters/sec.

Answer

The one way delay is 5 nSec
T = 5x10-9 = L/3x108

L = 1.5 meters
